Fed up of being reliant on a third party for the drilling of your stiles, damaged deliveries and made wrong?

Take control of your production using our cost effective CNC drilling machine !

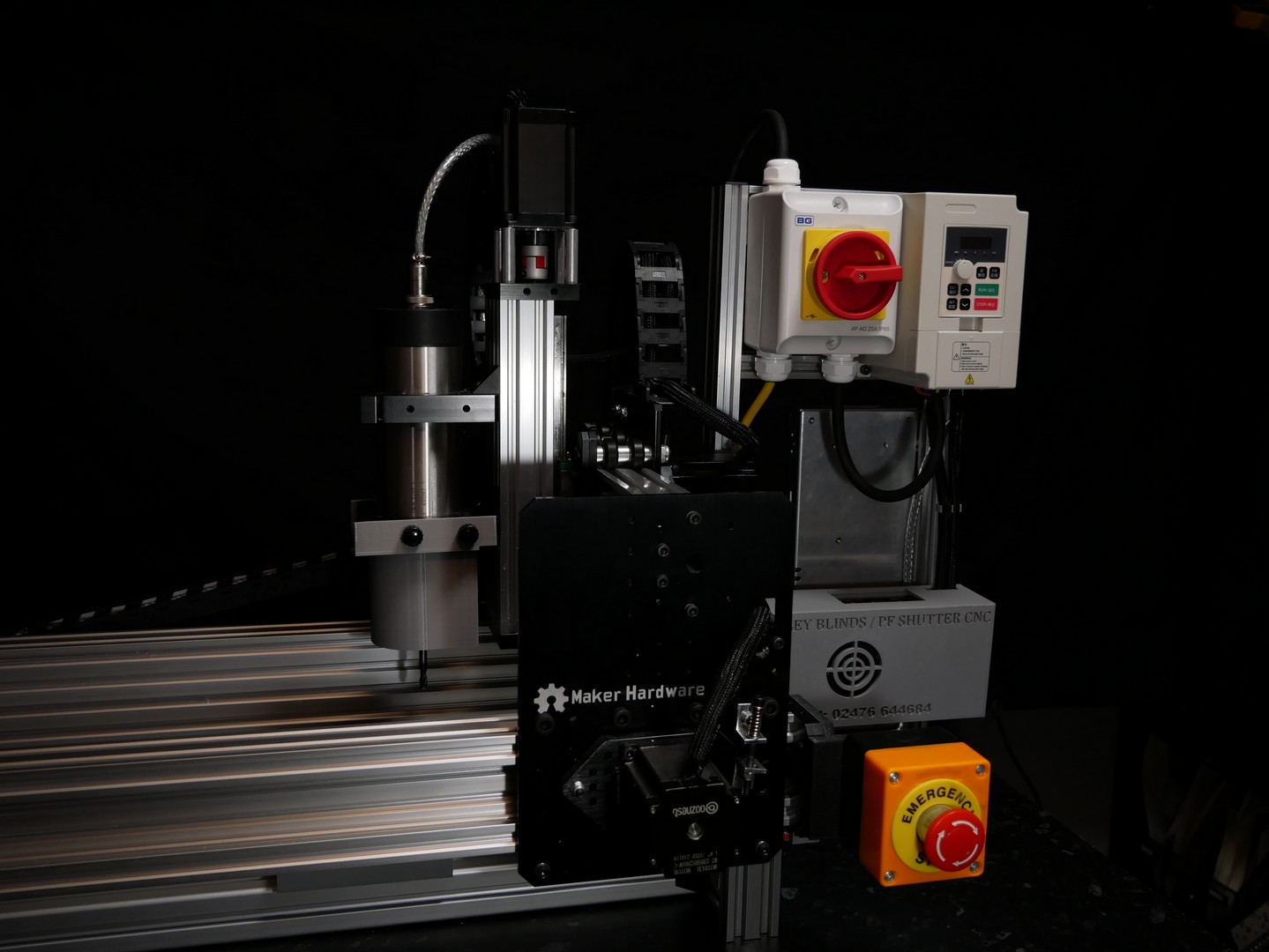

Our machine is custom built for drilling the holes in the styles. Take a look at the video to see our machine working.

We have made many upgrades to the original machine:

  1. Rack and pinion drive on the Y axis............no more belts to tension!
  2. Rack and pinion on the X axis
  3. Larger motor on the Z drive
  4. All motors are now fitted with plugs for easy replacement
  5. All limit switches have a new casing with plugs for easy replacement
  6. Isolator switch fitted in an easy to reach position
  7. Drill guard been fitted


We have also upgraded the speed with a 1800mm set of stiles and tilt rod taking 7mins 10 seconds, just enough time to cut the louvres whilst the machine is doing its job.
The max length of stile that the machine will take will be 2289mm.

For a more in-depth look at our CNC Drill Machine, complete with dimensions and specifications, we've got you covered. Watch the video and get up close and personal with this piece of technology. So sit back, grab some popcorn, and let the video take you on a journey through the features and capabilities of our CNC Drill Machine.

Operating the CNC Drill Machine is a breeze! Whether you're a techno super star or a complete non techno, this machine is designed to be user-friendly and uncomplicated. Don't believe us? Just check out the video below and see for yourself how effortlessly you can create precise and flawless holes in your stiles. Say goodbye to relying on third party suppliers and hello to taking full control of your stile drilling production with our CNC Drill Machine.
PF Shutter CNC Drilling Machine
Payment terms: 50% on order, balance on completion, payment by bacs.

The machine is made to order, contact: john@beverleyblinds.co.uk
If you are looking to purchase the machine
6999.99 £ (VAT excl.)
Add
Spare Drill Bits
Spare Drill Bits
CNC Machine

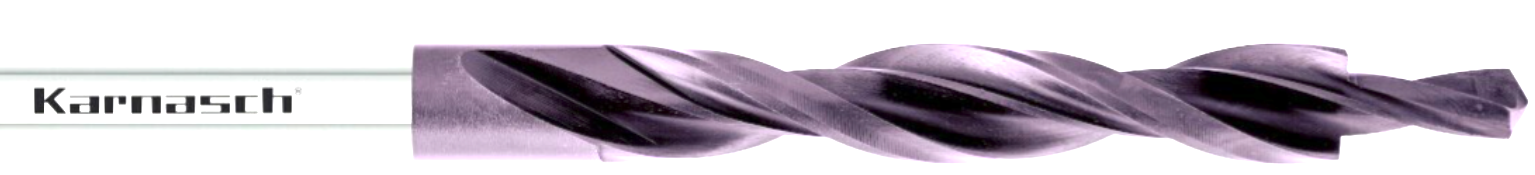

3,4 TO 6,5MM HSS-XE TITAN-TEC SUBLAND DRILL

You can buy direct from: https://karnasch.tools/uk/all-products/sinking-tools/stub-subland-drills/hss-xe-subland-drill-titan-tec-402020030/
46.68 £ (VAT excl.)
Add
Urban Shutter Data Base Upgrade
Full data base for Urban shutters including 50 & 100mm top and bottom rails in 63mm, 76mm and 89mm Louvres. as well as mid rail options. With over 12 million files this is supplied on external hard drive and is included with the package.
125.00 £ (VAT excl.)
Add
Our requirements

The CNC will be delivered and installed to your premises FOC within a 200 mile radius of CV7 9EP (if you are further away we can discuss a price). Training will be provided on the day (although it is super easy to use)  Thereafter we will of course provide full support via phone, zoom etc.
You will need to make sure there is enough space to sit the machine on (300cm X 60cm min) at a suitable work height which needs to be level.
You will need to provide a power source (240 volt sockets or extension lead)

We would advise that you have a compressed air line to clean the drilling area and machine rails.

The Package

We have removed all the options and now offer the full package as standard.....................everything is included !

  1. CNC Machine
  2. CNC Controller
  3. CNC Software
  4. VDF Controller
  5. VDF Spindle
  6. Drill Bit
  7. Data Base covering glass sizes from 300mm to 2400mm (smaller sizes available on request using our bespoke service)
  8. Tool kit
  9. PC Fully configured and ready to go. (you will need to provide wireless internet)

Controller

The controller is the "brains" of the system, it controls all of the motors and safety switches and travel speeds etc.
the controller does require software to drive it, this is included with full training done on the day.

Machine Dimensions

Length: 292cm
Height: 65cm
Width: 54cm

Payment terms:  50% on order, balance on completion, payment by bacs.
